VT009 is a linear vibration plate featuring adjustable frequency from 10Hz to 40Hz and two amplitude settings.
| Movement Pattern & Key Parameters | |
 Linear Vibration |
|
2025 Holiday Discount
$81.99 off VT007 — Code: THANKS007
$201.99 off VT009 — Code: THANKS009
$201.99 off VT009 — Code: THANKS009
Ends Monday, Dec 1 at 23:59 CST
(purchase at VT Store — while supplies last)
Index for Content Below
- Product Overview
- Handlebar
- Tech Specifications
- Frequency & Resonance
- Control Features
- Issues & Warnings
- Quality & Warranty
- Where to purchase
- Shipping & Customs
Product Overview
Model VT009 was developed as the pro version of our signature VT007. Its vibration driver incorporates an additional pair of eccentric wheels, and the machine body is reinforced with all-steel plates and upgraded rubber spring supports. These upgrades give VT009 a wider amplitude range and more uniform vibration intensity across its platform.
With the increased machine weight and reinforced construction, VT009 is heavy and strong enough to safely attach a handlebar with the necessary stability.
The enhanced VT009 accommodates a broader range of applications — from athletes seeking higher-intensity muscle activation to seniors who appreciate the option of a handlebar.
While retaining the proven movement pattern of VT007, VT009 is more versatile, robust and durable.
Beyond being built to last, VT009 presents a timeless industrial aesthetic defined by simplicity, strength, and elegant style.
Handlebar
VT009 is heavy and strong enough to safely attach a handlebar with the necessary stability. The handlebar is sold separately as an optional attachment.
Handlebar Basic Version (In Stock for Sale)
Our first handlebar production batch—the 2025 version—is in stock now and available for purchase on our ecommerce store.
Basic Version: 3-Piece Assembly
However, we plan to abonden the Basic Version and replace it with the Optima Version for improved stability, usability, and overall performance.
Why we decide to abandon the Basic Version?
The Basic Version was designed as a three-piece assembly to reduce package size and shipping cost. However, this design sacrifices some structural stability, and the handlebar sits too close to the vibration plate, limiting its usalibility.
Also, the considertation for the three-piece-assembly design was to allow installation by single-person. Although the installation process is tedious, it is do-able by a single handy-person.
Overall, the Basic Version is a compromise intended to balance shipping efficiency and relatively easier installation. After further evaluation, we decided to design a new handlebar that truly meets the needs of VT009—providing better stability, improved usability, and a more reliable user experience.
Currently we have 300 units of Basic Version handlebar already made, and we will try to get them sold.

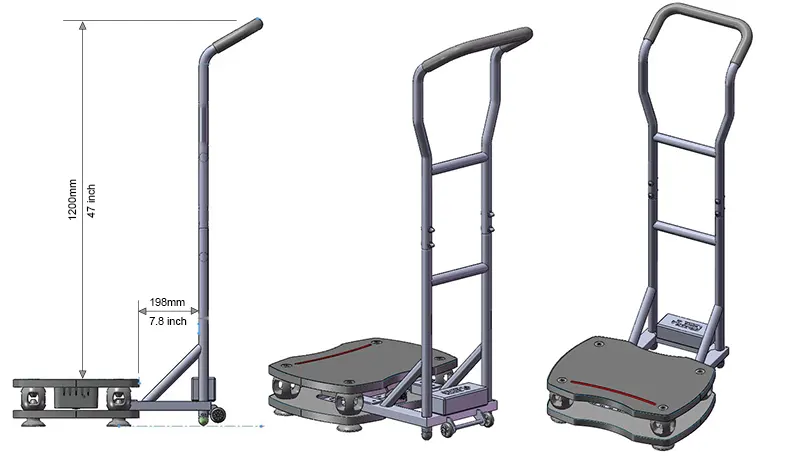

Handlebar Optima Version (Not Available Yet)
We have completed the design, tested and verified the prototype for the Optima Version. Production is scheduled for December 2025, and it will be available in the market by late January 2026.
The Optima Version is larger and heavier, difficult to install by one person.
Optima Version: 2-Piece Assembly
We will contract a 3rd party service provider to offer nationalwide VT009 handlebar installation in the US as an optional service for our customers.

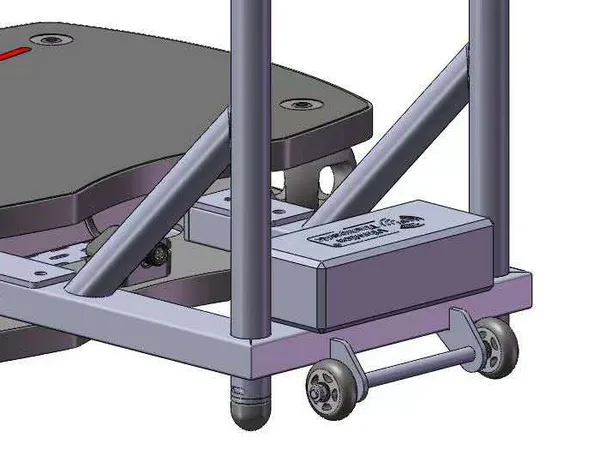

Rollway Wheels
Both handlebar versions incorporate a pair of rollaway wheels. Once the handlebar is attached, the two wheels allow the user to tilt and roll the heavy machine for repositioning, greatly improving convenience in home and clinical environments.
Rollaway Wheels on VT009 Handlebar
Tech Specifications
| Vibration Pattern | Linear Vibration |
| Vibration Frequency | 10 - 40 Hz Adjustable, 1 Hz incremental |
| Amplitude at Lo |
0.8 - 1.4 mm without load |
| Amplitude at Hi | 1.7- 3.1 mm, without load |
| Nominal G-force | @No Load: 0.2 - 3.7 @180Lb: 0.1 - 3.1 |
| Machine Size | 560mm x 420mm x 145mm L22" x W16.5" x H5.7" |
| Machine Net Weight | 21 kg / 46 lb |
| Electric Motor | 80W PMDC Motor, 900‑2400RPM |
| Power Supply | Universal 100V-240V |
| Max User Body Weight | 136 kg / 300 lb |
Frequency & Resonance
VT009's vibration frequency range is specifically designed to align with the natural frequency of skeletal muscles, for creating a resonance effect.
At resonance, the vibrations most effectively induce muscle contractions, providing an intense and rapidly repeated mechanical stimulation to both the musculoskeletal and neuromuscular systems. Vibration therapy utilizes this unique simulation for health improvement.
The chart below exhibits vibration frequency ranges of different types of vibration plates, compared to the natural frequency of human body soft tissues.
Not a Medical Device
VT009 is sold as an exercise equipment. Please consult a medical professional if you intend to use this device to treat a medical condition.
When properly used, VT007 can induce rapidly repeated skeletal muscle contraction, which can enhance the physical exercise effectiveness.
The unique muscle contraction stimulation may be used as a therapeutic intervention for musculoskeletal, neuromuscular and circulatory disorders. The physiological processes behind muscle contraction are beneficial for self-healing and general health improvement.
If used incorrectly, vibration may adversely impact the user.
Please read the disclaimers, cautions and exceptions on our website. The health benefits suggested or implied on our websites and product literature are not certified or endorsed by any regulatory authority or medical institute.
Control Features
The use of VT007 is simple and intuitive. Users can easily adjust the session time, frequency, and amplitude using either the control console or the remote control. The buttons on the control panel perform the same functions as the corresponding buttons on the remote control.
Before starting the vibration, user can choose manual control mode or any of three program control modes, then press Play button to start the session.
Manual Control
In manual control, user can adjust the following parameters.
| Session Time | 1 - 20 minute, default 10 minutes |
| Frequency | 15 - 40 Hz, one hertz incremental |
| Amplitude | Lo / Hi switch |
Program Control
Three program control modes (P1, P2 and P3) are built-in with VT007. Each program automatically run a spectrum of frequencies, changing every 5 seconds, within a total session time of 10 minutes.
In P3 mode, amplitude switch is added to the frequency change spectrum.
The charts below exhibit the frequency and amplitude pattern of each program control mood.
Time Line (Second) Time Line (Second) Time Line (Second)Each dot represents a 5 second period vibration
Green dot: Low Amplitude | Red dot: High Amplitude
Green dot: Low Amplitude | Red dot: High Amplitude
Issues & Warnings
Heavy Machine Weight
VT009 weighs 48lb (53lb with packaging), considered as a heavy appliance for home use. It requires two person to safely lift it.
The VT009 main body does not come with rolling wheels to help move the machine.
If the handlebar is installed, the user can use the rolling wheels on the handlebar to move the machine.
You should always keep your body on the machine before starting the vibration. Never let the machine to run unattended.
Floor Vibration
VT009 should be used on a solid floor that resists vibration. It is recommended to put the machine on a carpet or exercise mat so as to prevent the machine from jumping or drifting on the floor.
While VT007 transmits most vibration to the user, it also transmits some vibration to the floor.
We don't recommend using VT007 on a wood frame floor that is connected to the wall. VT009 can vibrate the floor and the connected building structure, making extra noise. Over time, vibration may cause damage to the house structure.
Floor vibration is a major issue that limits the use of a high frequency vibration machine like VT009 in wood-frame construction houses.
Use VT007 on an exercise matDepending on the solidity of the floor, placing an anti-vibration cushion beneath the machine may be a solution. A large piece of exercise mat made of EVA material, 1/2" thick, may serve this purpose well.
In an wood-frame construction house, VT009 should be used on the ground floor or in the basement.
VT007 should not be used in a mobile home.
Drift on Floor
The centrifugal force generated by vibration can overcome the machine weight and cause the machine to drift on the floor, especially when there is no body weight on the machine.
Using the VT009 on a carpet or on a large exercise mat can effectively prevent the machine from drifting, due to the added buffer and friction.
You should always keep your body on the machine before starting the vibration. Never let the machine to run unattended.
Potential Risks
The risks of using the VT007 vibration plate have not been thoroughly studied.
Clinical trial based scientific studies support that proper use of vibration plate does not pose a health hazard. However, a cautious and risk-averse approach is always recommended.
Individuals with certain medical conditions may not be suited for using the VT007.
The Clunk Sound is NOT an Issue
This is not an issue.
When you start the vibration plate or switch the amplitude between Hi and Lo, you can hear a clunk sound. This is normal, not a problem.
When the machine is started, or amplitude switched, the motor reverses the direction to engage different number of eccentric wheels. In the process, the eccentric wheels strike the position block and make the clunk sound.
In P3 mode, the machine automatically switches the amplitude multiple times in the programmed session. Each time when the amplitude is switched, there is a clunk sound, and you know the amplitude is switched.
You may also hear a metal grounding sound, which is the sound that the eccentric wheels turn on the motor shaft.
These are normal sounds of VT007 in operation, no any harm to the machine.
Quality & Warranty
VT009 builds on the proven technology of our VT007, a model known for consistent quality and well-controlled defective rates. This foundation allows us to be confident in the quality of VT009.
Replacement parts and modules can be ordered free of charge from our website for at least 10 years after purchasing the machine.
Where to Purchase
Purchase VT vibration plate from our VT Amazon Store or VT eStore, same terms and conditions.
- Free shipping to the 48 contiguous states in the US
- Free 90 day return for any reason for full refund, free return shipping
- 10 year warranty, no any out-of-pocket expense for any warranty service
- Exceptional customer service and lifetime support from a professional team that are passionate about vibration therapy and care about customers.
Shipping & Customs
| Package size | 610mm x 470mm x 203mm L24" x W18.5" x H8" |
| Package weight | 24 kg / 53 lb |
| HS Code | 9506.91 Articles and equipment for general physical exercise, gymnastics or athletics |
